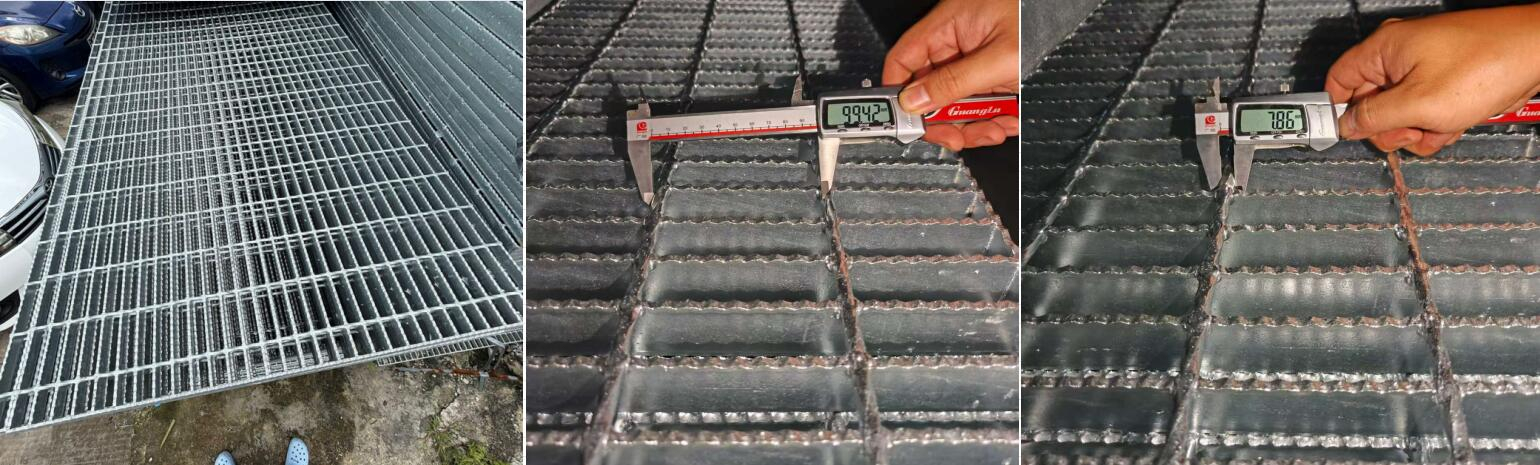

ASTM A36 Carbon Steel Grating for Structural Platforms with High Load Capacity

Our steel grating (bar grating / metal grating / galvanized grating) is manufactured from high-quality carbon steel or stainless steel, widely used for flooring, walkway, platform, trench cover, drainage systems and stair treads.

With strong structure and high load capacity, it is an ideal solution for industrial grating, heavy duty grating, anti-slip grating and outdoor grating applications.

• Plain & Serrated Type: 20 x 3 to 100 x 10 mm
• I-Section Type: 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4 mm

• 12.5, 15, 25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mm
• Custom specifications available (30, 40, 60mm recommended)
• American Standard: 1" x 3/16", 1 1/4" x 3/16", 1-1/2" x 3/16", 1" x 1/4", 1-1/4" x 1/4", 1 1/2" x 1/4" (19-w-4)

• 38.1, 40, 50, 60, 76, 80, 90, 100, 101.6, 102, 135 mm

• Mild Steel (Low Carbon Steel) or Stainless Steel

• Untreated, Painting or Hot DIP Galvanizing

• China: YB/T4001-1998
• USA: ANSI/NAAMM (MBG531-88)
• UK: BS4592-1987
• Australia: AS1657-1985
• Japan: JJS

1. Bearing Bars Center to Center and Cross Rods Center to Center
2. Depth and Thickness of Bearing Bars
3. Surface: Serrated or Smooth
4. Dimensions of Area
5. Span (Direction of Bearing Bars)
6. Finish: Mill (Bare), Black Paint, or Galvanized
7. Material: Steel, Stainless Steel, or Aluminum
8. Banding or No Banding

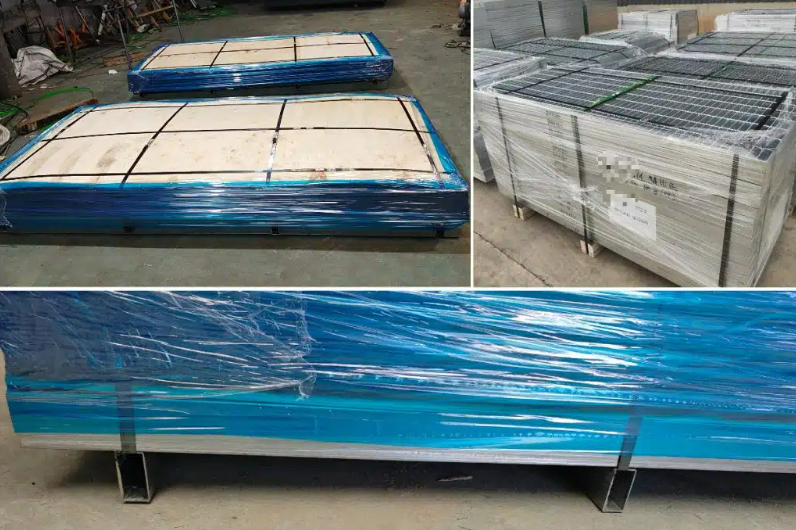

• Packing Options: Steel Pallet Packing or Bulk Loading
• Container Loading: 20GP / 40HQ
• Producing Time: 7-20 Days
