Manufacturer Provides Welded Hot-DIP Galvanized Stainless Steel Grating
What Is Steel Grating?
Steel grating, also known as steel grid or bar grating, is a versatile and robust flooring solution designed for industrial, commercial, and architectural applications. Made from high-quality carbon or stainless steel, our steel grating features a lightweight yet durable design that ensures excellent load-bearing capacity and long-lasting performance.
Key features include a slip-resistant surface, customizable sizes, and various spacing options to suit different needs. The open design allows for optimal drainage and air circulation, making it ideal for demanding environments such as factories, walkways, and drainage covers.
Whether you require heavy-duty steel grating for energy sectors or lightweight options for pedestrian areas, our products meet safety standards while facilitating easy installation and maintenance. Enhance your project with our top-quality steel grating to achieve maximum efficiency and safety.
| Material |
Mild steel / carbon steel / stainless steel+abrasive plate: Q235B, ASTM A36, S275JR etc. |
| Specification |
All the stair treads can be customized
Bearing bar: from 25*3mm to 100*8mm
Bearing bar pitch: 12.5, 22, 25.4, 30, 34, 40, 41, 60mm etc.
Cross bar: 5mm,6mm,8mm, round or twisted bar
Cross bar pitch: 33, 38, 50, 76, 100mm |
| Galvanized standard |
ISO 1461; ASTM A123; GB/T13912:2002 |
| Package |
Seaworthy package |
| MOQ |
50 pieces |
All gratings as per your requirements can be customized.
Steel Grating Specification
| Bearing bar pitch |
Cross bar pitch |
Load steel size (Width × Thickness) |
| 30 |
100 |
G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
| 50 |
G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 |
| 40 |
100 |
G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
| 50 |
G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 |
| 60 |
50 |
- | G253/60/50 | G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50 |
| Bearing bar pitch |
Cross bar pitch |
Load steel size (Width × Thickness) |
| 30 |
100 |
G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100 |
| 50 |
G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50 |
| 40 |
100 |
G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100 |
| 50 |
G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50 |
| 60 |
50 |
G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50 |
Common Steel Grating Specification
- Bearing bar size (mm): 25 x 3; 25 x 5; 30 x 3; 30 x 5; 32 x 3; 32 x 5; 35 x 3; 35 x 5...
- Bearing bar pitch (mm): 20; 30; 34; 40; 50; 60...
- Cross bar pitch (mm): 50; 100; 38...
Surface Treatment

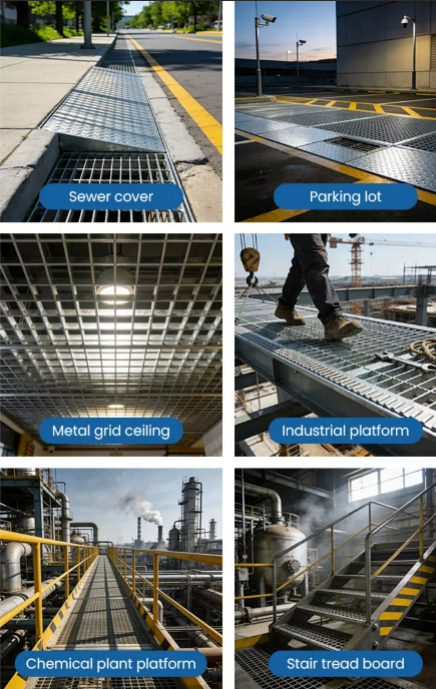

Application Scenarios
Steel grating consists of bearing bars and cross bars joined by automatic press welding machines. Widely used in petroleum chemical industry, power plants, water and sewage treatment plants, municipal engineering, and environmental sanitation engineering fields for platforms, footpaths, ditch covers, manhole covers, ladders, fences, and guardrails.
Frequently Asked Questions
What are bearing bars and cross bars?
Bearing bars carry the load; cross bars hold the bearing bars in place.
Can steel grating support heavy machinery?
Yes, with proper design, steel grating can support industrial equipment.
How is steel grating installed?
It can be mounted on support frames, welded, bolted, or anchored depending on the structure.
Can steel grating be cut on-site?
Yes, using cutting tools suitable for steel, such as angle grinders or plasma cutters.
What is the difference between welded and pressed steel grating?
Welded grating has bearing and cross bars welded; pressed grating uses pressure-locked joints.
Is maintenance required for steel grating?
Minimal maintenance is needed; periodic cleaning and inspection are recommended.
