| Product Name | Steel Bar Grating |
| Material | Mild Steel(Low Carbon Steel),S235,S275JR,A36,or Stainless Steel SS304,SS316 etc, Alumium 3003, 5052 |
| Surface treatment | Hot dipped galvanized
polished or untreated |
| Bearing bar (width x thickness) | 25x3,25x4,30x3,30x4,30x5,32x5,40x5,50x5,75x10mm |
| Bearing bar pitch | 12.5,15,20,23.85,25,30,30.16,30.3,34.3,35,40,41,60mm. |
| US standard:1"x3/16",11/4"x3/16",11/2"x3/16",1"x 1/4", |
| 11/4"×1/4",11/2"x 1/4"etc. |
| Cross bar pitch | 38,50,76,100,101.6mm or customized |
Pitch of
Bearing bar | Cross-bar
Pitch | Specification of bearing bar(widthxthickness) |
|
| 20×3 | 25×3 | 32×3 | 40×3 | 20×5 | 25×5 |
| 30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
| 30 | 50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 |
| 40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
| 40 | 50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 |
| 60 | 50 |
| G253/60/50 | G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50 |
Pitch of
Bearing bar | Cross-bar Pitch | Specification of bearing bar(widthxthickness) |
|
| 32×5 | 40×5 | 45×5 | 50×5 | 55×5 | 60×5 |
| 30 | 100 | G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100 |
| 30 | 50 | G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50 |
| 40 | 100 | G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100 |
| 40 | 50 | G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50 |
| 60 | 50 | G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50 |

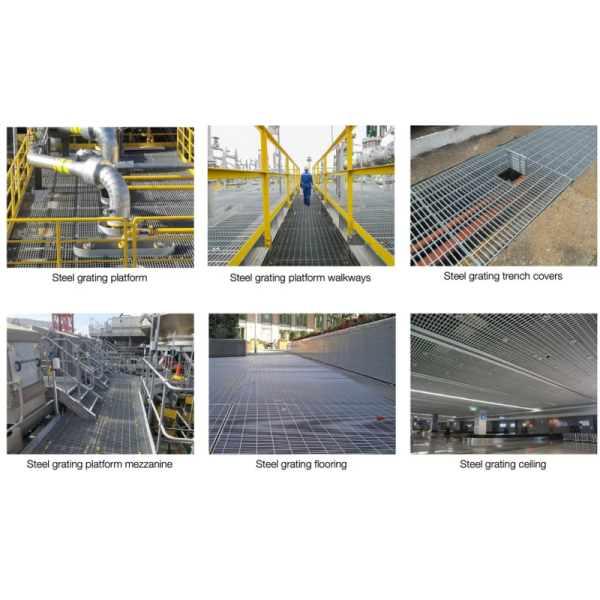

| Application | Working Platform, Handrail Infill, Walkway, Bridge decking, Stair Treads, Transformer Reservoir,Trench Cover, Ceiling, Grating Fence
Sunshade Panels |
