Hot DIP Galvanized Plain Type or Serrated Type Steel Grating with CE Approval for Industrial Flooring and Mezzanines

Steel grating, also known as bar grating or metal grating, is an open grid assembly of metal bars. The bearing bars run in one direction and are spaced by rigid attachment to perpendicular cross bars or by bent connecting bars extending between them. This design is intended to hold heavy loads with minimal weight. Steel grating is widely used for floors, mezzanines, stair treads, fencing, trench covers, and maintenance platforms in factories, workshops, motor rooms, trolley channels, heavy loading areas, boiler equipment, and heavy equipment areas.

Bar grating types are specified by bearing bar spacing followed by cross rod spacing.

Standard	1.China: YB/T4001-1998;
	2.USA:ANSI/NAAMM(MBG531-88)
	3.UK:BS4592-1987
	4.Australia:AS1657-1985;
	5.Japan:JIS
Material	Q235,A36,SS304
Bearing bar	1.plain&serrated type:20x3 to 100x3mm
	2.I-section type:(25,32,38,40,50)x5x3;
	(50,55,60,65,70,75)x7x4,etc
Surface treatment	untreated, painting or hot dip galvanizing

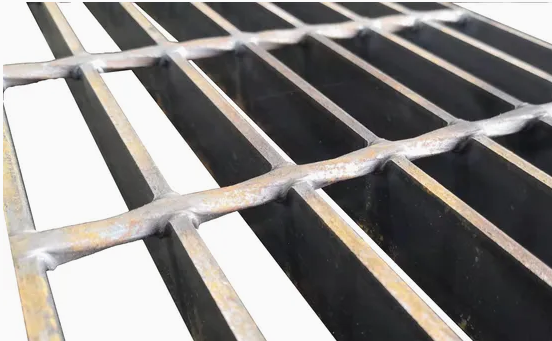

Grating type	1.Plain style steel grating;

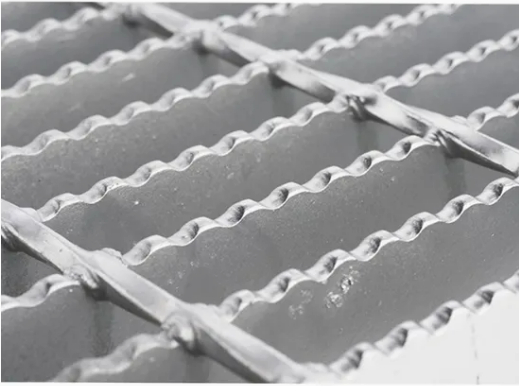

	2.serrated style steel grating;
	3.I bar type steel grating.
Application Fields	1.steel structure platforms;
	2.stair treads,sidewalks;
	3.drainages;
	4.well covers.
